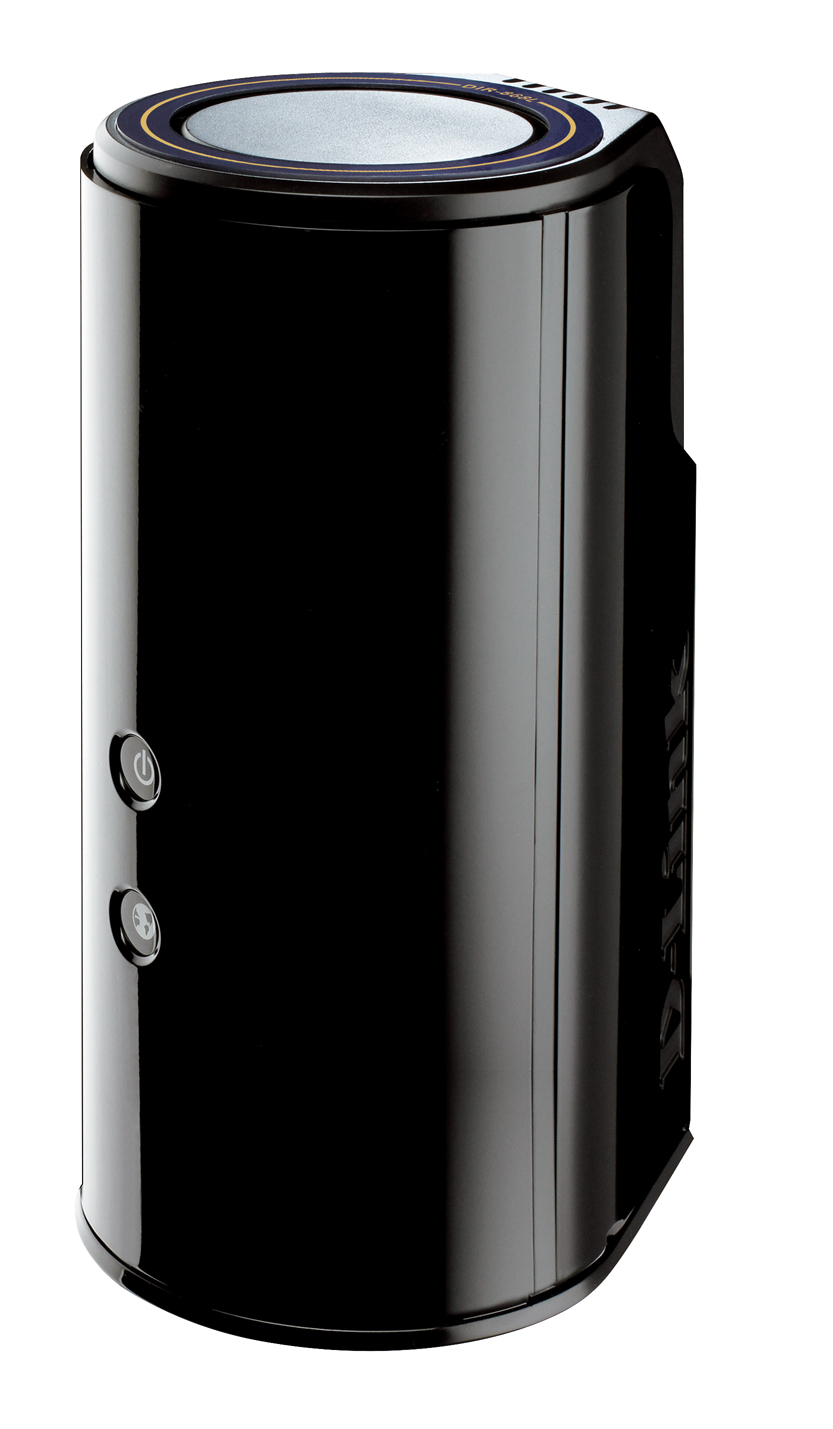

D-Link DIR-868L AC1750 Dual Band 24GHz 5GHz Gigabit Ethernet

Wireless Features

• Dual‑band 802.11ac (Draft AC1750: up to 1.3 Gbps at 5 GHz, 450 Mbps at 2.4 GHz)

• Six internal antennas with AC SmartBeam™ for optimized signal coverage

• Wireless standards supported:

  • 2.4 GHz: 802.11b/g/n (up to 450 Mbps)

  • 5 GHz: 802.11a/n/ac (up to 1300 Mbps)

• Security: WEP, WPA, WPA2, WPS support

---

🌐 Wired Interfaces

• WAN: 1 × Gigabit Ethernet

• LAN: 4 × Gigabit Ethernet ports

---

🔌 USB & File Sharing

• USB: 1 × USB 3.0 port (for printer or storage sharing via SharePort™ Plus)

• Includes SharePort Mobile and DLNA/UPnP AV support (media streaming/sharing)

---

🧠 Hardware & Performance

• CPU: Broadcom BCM4708 ARM Cortex-A9 dual‑core @ ~800 MHz

• RAM: 256 MB DDR2

• Flash Storage: 128 MB NAND

• Wireless Chips:

  • 5 GHz radio: Broadcom BCM4360

  • 2.4 GHz radio: Broadcom BCM4331

---

🌡️ Electrical & Environmental

• Power: 12 V DC, 2.5 A comx-computers.co.za+2secureswitches.com+2en.techinfodepot.shoutwiki.com+2

• Operating temperature: 0–40 °C, humidity: 10–95% non-condensing secureswitches.com+1comx-computers.co.za+1

---

📏 Physical Dimensions

• Size: ~218 × 125 × 103 mm (8.6 × 4.9 × 4.05 in) secureswitches.com

• Weight: ~530 g (1.17 lb) secureswitches.com

---

🚀 Performance Highlights

• Routing: ~924 Mbps WAN→LAN, ~888 Mbps LAN→WAN, 1005 Mbps total simultaneous throughput

• Wireless tested speeds: ~573 Mbps (5 GHz), ~113 Mbps (2.4 GHz) in real-world testing

---
