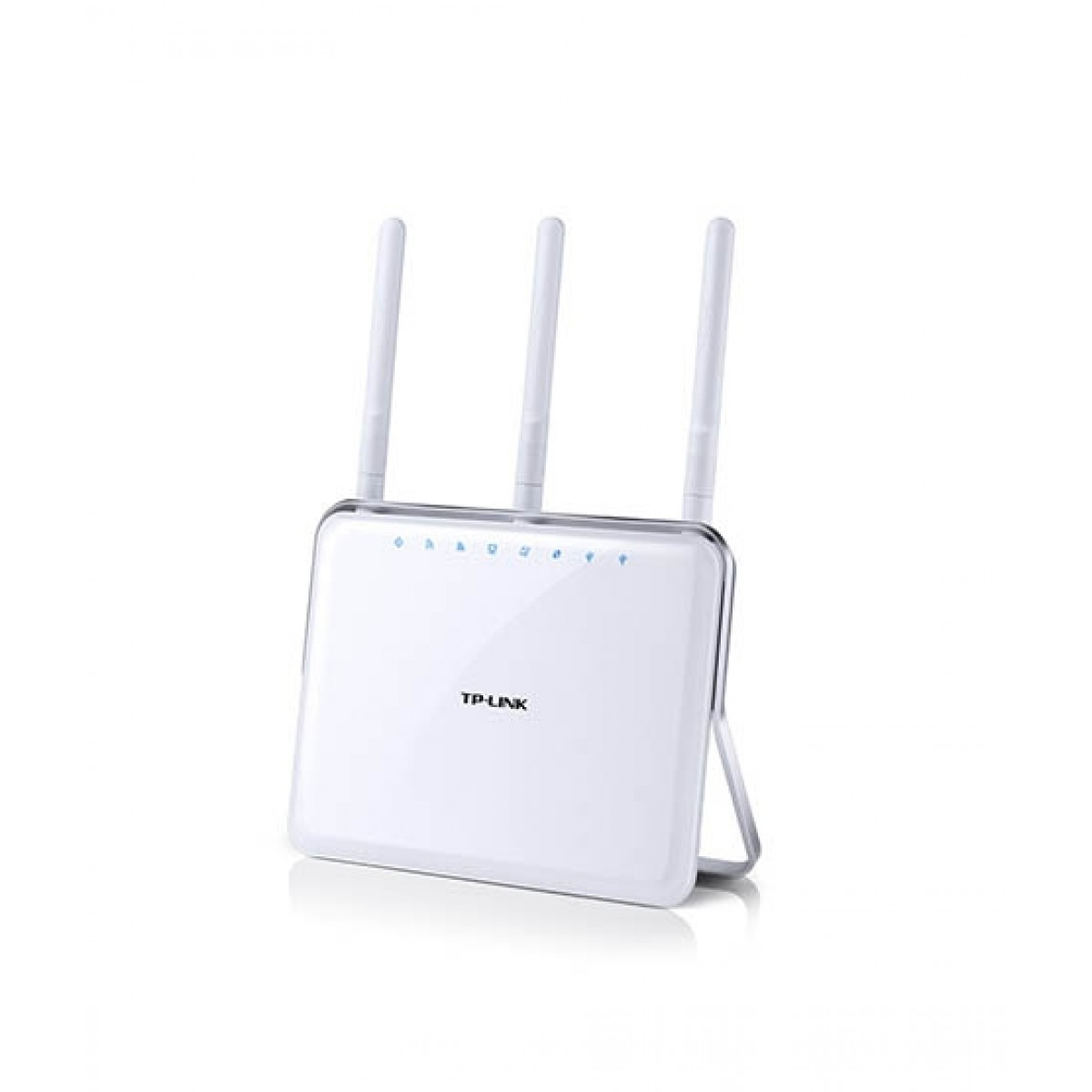

Tp-link Archer C9 AC1900 Wireless Dual Band Gigabit Router not Configerable

WIRELESS FEATURES

• Standards Supported:
• 802.11ac (Wi-Fi 5), n, a @ 5GHz
• 802.11n, b, g @ 2.4GHz
• Speed (AC1900):
• 5GHz: Up to 1300 Mbps
• 2.4GHz: Up to 600 Mbps
• Ideal for: HD/4K streaming, online gaming, video calls, etc.
• WiFi Range: Suitable for 3-bedroom houses
• 3 High-Performance Detachable Antennas
• Beamforming: Focuses signal toward connected devices for stronger, more stable connections
• Capacity: Dual-band, Medium capacity
• Can handle multiple devices on 2.4GHz and 5GHz bands with load balancing
• Modes:
• Router Mode
• Access Point Mode (can be used to extend an existing network)

HARDWARE

• Processor: Powerful 1.8 GHz 64-bit Quad-Core CPU
• Helps with stable performance under high loads (many devices or heavy streaming)
• Ports:
• 1× Gigabit WAN (internet)
• 4× Gigabit LAN (for wired devices)
• USB: 1× USB 3.0, 1× USB 2.0
• Supports Time Machine, FTP, media sharing, Samba server
• Buttons: WiFi On/Off, Power, LED On/Off, WPS, Reset
• Power Supply: 12V ⎓ 3.3A

SECURITY

• Encryption Standards: WEP, WPA, WPA2, WPA/WPA2-Enterprise (802.1x)
• Firewall: SPI, MAC/IP binding, Application Layer Gateway
• Guest Network: Yes, one on each band
• VPN Support: OpenVPN and PPTP

SOFTWARE FEATURES

• Protocols: IPv4 and IPv6
• Parental Controls: URL filtering, time-based access
• WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• QoS (Quality of Service): Prioritize devices
• Cloud Services: Firmware upgrades, TP-Link ID support
• DDNS: TP-Link, DynDNS, NO-IP
• Management: Via web interface or Tether mobile app

PHYSICAL DETAILS

• Dimensions: 8.7 × 3.4 × 6.6 in (221 × 86 × 168.5 mm)
• Included in Box: Router, Power Adapter, Ethernet Cable, Quick Guide

ENVIRONMENT & CERTIFICATIONS

• Certifications: FCC, CE, RoHS
• Operating Conditions:
• Temp: 0–40°C
• Humidity: 10–90% non-condensing

WIRELESS PERFORMANCE

• Max Transmit Power:
• CE: <20 dBm (2.4GHz), <23 dBm (5GHz)
• FCC: <30 dBm
• Reception Sensitivity:
• Decent signal sensitivity values for both 2.4GHz and 5GHz bands

TP-Link Archer C9 is a solid mid-range dual-band router best suited for:

• Medium-sized homes (up to 3 bedrooms)
• Streaming and gaming on multiple devices
• Users needing USB storage/media sharing
• Those looking for parental control and basic VPN features
