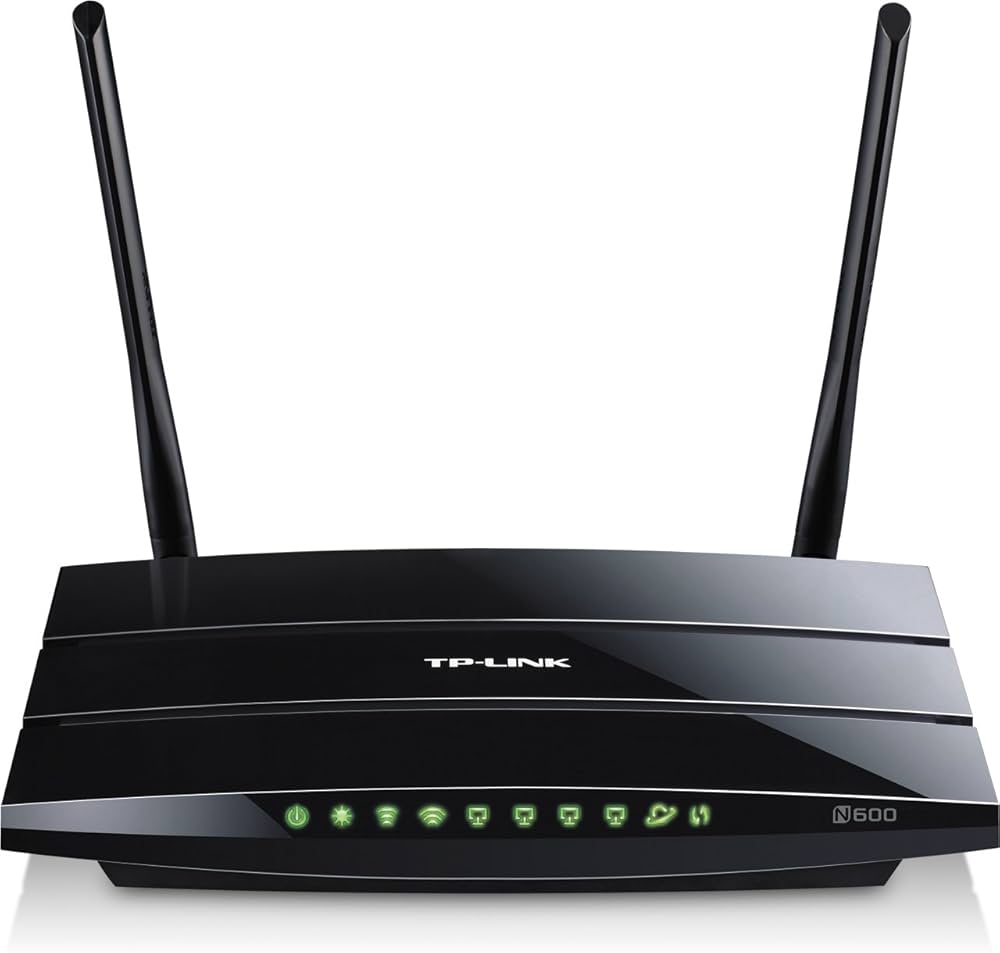

Tp-link TP-Link TL-WDR3600 N600 Built-in Print Server 80211a/b/g/n

TP-Link TL-WDR3600 N600 Built-in Print Server 802.11a/b/g/n Dual Band 2.4GHz 5GHz Gigabit Ethern

• Interfaces:
• 4 × Gigabit LAN Ports (10/100/1000 Mbps)
• 1 × Gigabit WAN Port (10/100/1000 Mbps)
• 2 × USB 2.0 Ports (for printer/media/file sharing)
• Buttons:
• WPS/Reset Button
• Wireless On/Off Switch
• Power On/Off Button
• Antenna:
• 2 × External Detachable Dual-Band Antennas (RP-SMA)
• Power Supply:
• Not explicitly listed, typically 12V ⎓ 1.5A
• Dimensions:
• 243 × 160.6 × 32.5 mm (9.6 × 6.4 × 1.3 in)
• Package Weight:
• 2.15 lb
• Box: 12.4 × 9.5 × 2.7 in

WIRELESS FEATURES

• Standards:
• IEEE 802.11a/b/g/n
• Dual-band (2.4 GHz and 5 GHz)
• Speed:
• 2.4 GHz: Up to 300 Mbps
• 5 GHz: Up to 300 Mbps
• Combined theoretical bandwidth: 600 Mbps
• Transmit Power (EIRP):
• < 20 dBm
• Sensitivity (Receiver):
• 2.4 GHz:
• 270M: -70 dBm
• 195M: -71 dBm
• 130M: -74 dBm
• 54M: -79 dBm
• 6M: -94 dBm
• 5 GHz:
• 270M: -67 dBm
• 195M: -70 dBm
• 130M: -73 dBm
• 54M: -79 dBm
• 6M: -92 dBm
• Wireless Functions:
• Wireless Radio On/Off
• WDS Bridge
• WMM (QoS)
• Wireless Statistics
• Security:
• 64/128-bit WEP
• WPA/WPA2, WPA-PSK/WPA2-PSK

SOFTWARE FEATURES

• WAN Types Supported:
• Dynamic IP
• Static IP
• PPPoE
• PPTP (Dual Access)
• L2TP (Dual Access)
• BigPond
• DHCP:
• Server, Client, Address Reservation, Client List
• QoS:
• WMM
• Bandwidth Control
• Port Forwarding:
• Virtual Server
• Port Triggering
• UPnP
• DMZ
• DDNS Support:
• DynDNS
• NO-IP
• Comexe
• VPN Pass-Through:
• PPTP, L2TP, IPSec
• Access Control:
• Parental Controls
• Host List, Access Schedule
• Rule Management
• Firewall:
• DoS Protection
• SPI Firewall
• IP/MAC/Domain Filters
• IP & MAC Binding

USB DEVICE SUPPORT

• Storage Sharing:
• Samba (Windows file sharing)
• FTP Server
• Media Server (DLNA)
• Printer Sharing:
• Yes (via USB Printer Server)

ENVIRONMENTAL SPECS

• Operating Temperature:
• 0°C ~ 40°C (32°F ~ 104°F)
• Storage Temperature:
• -40°C ~ 70°C (-40°F ~ 158°F)
• Humidity:
• Operating: 10% ~ 90% (non-condensing)
• Storage: 5% ~ 90% (non-condensing)
